Render Templates for Custom Data Views

Render templates let you write a small JSX component that takes a span’s input or output as data and renders it however you want. Use them when the default messages, JSON, YAML, and text views don’t show your data the way you want to read it.

Where to find them

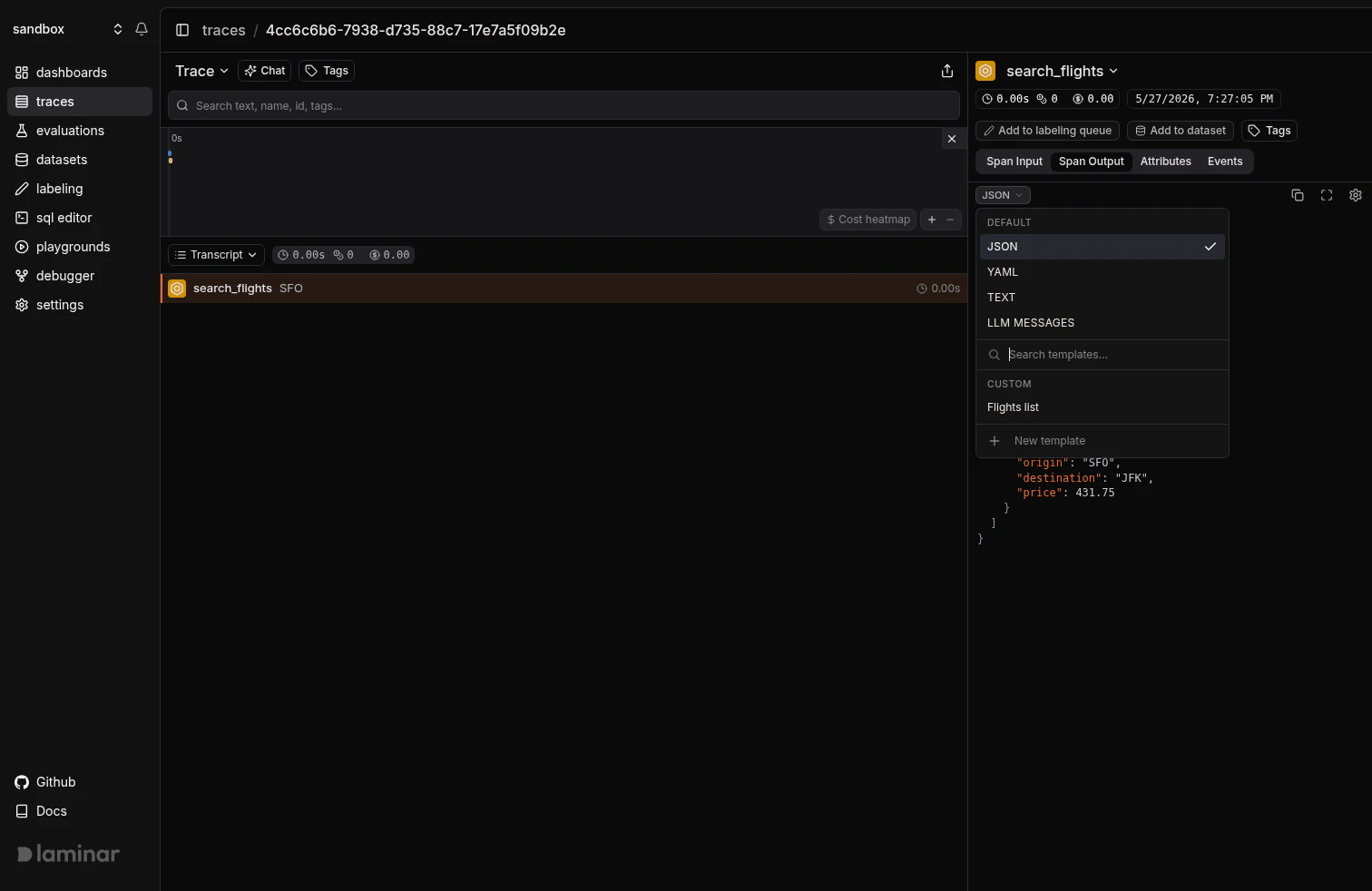

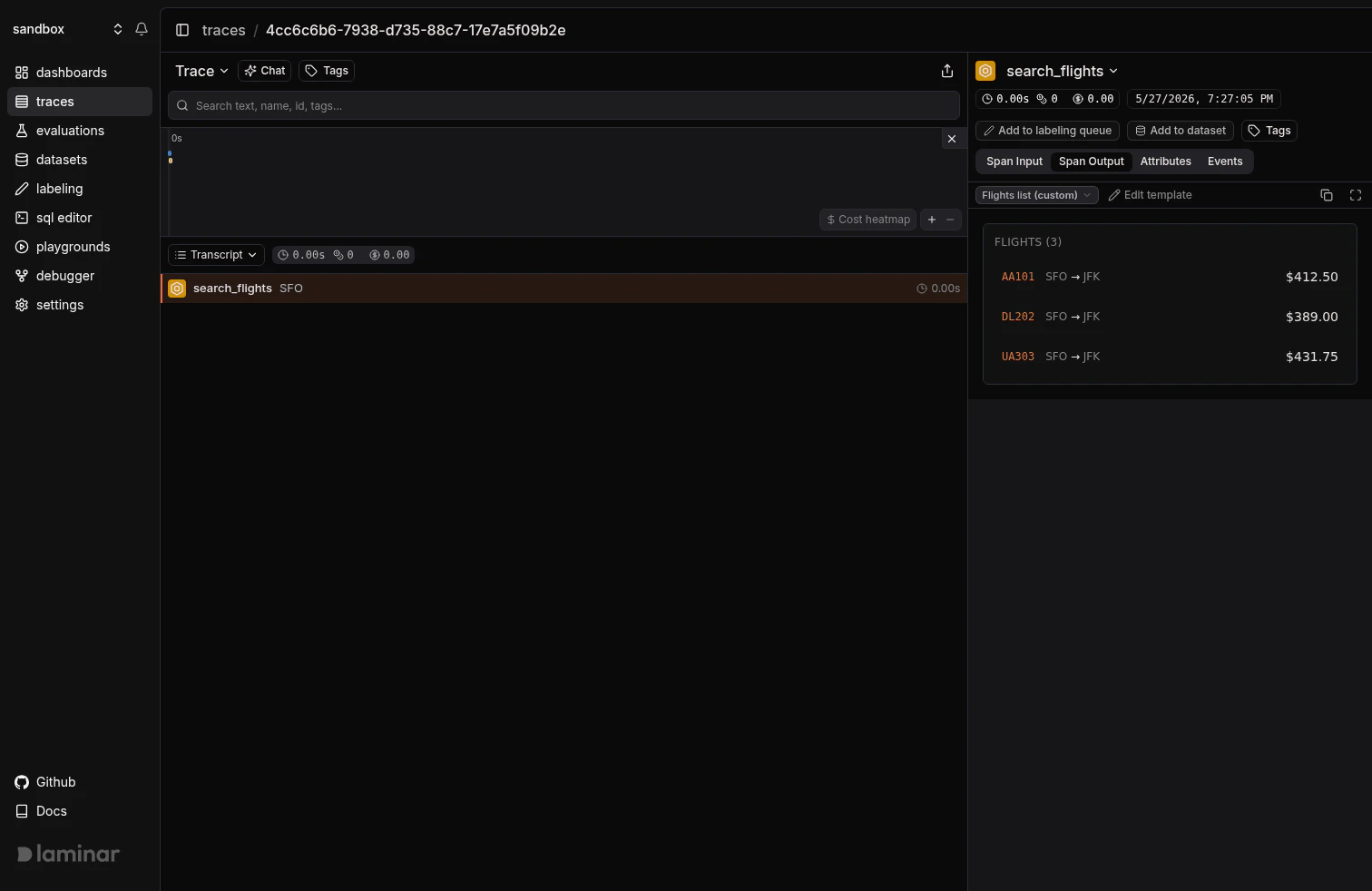

Every input/output viewer in Laminar has a mode picker in the top-left corner. Alongside the default LLM Messages, JSON, YAML, and TEXT modes, the picker lists every render template in the project under Custom. Pick one and the pane renders through that template.

Write a template with AI

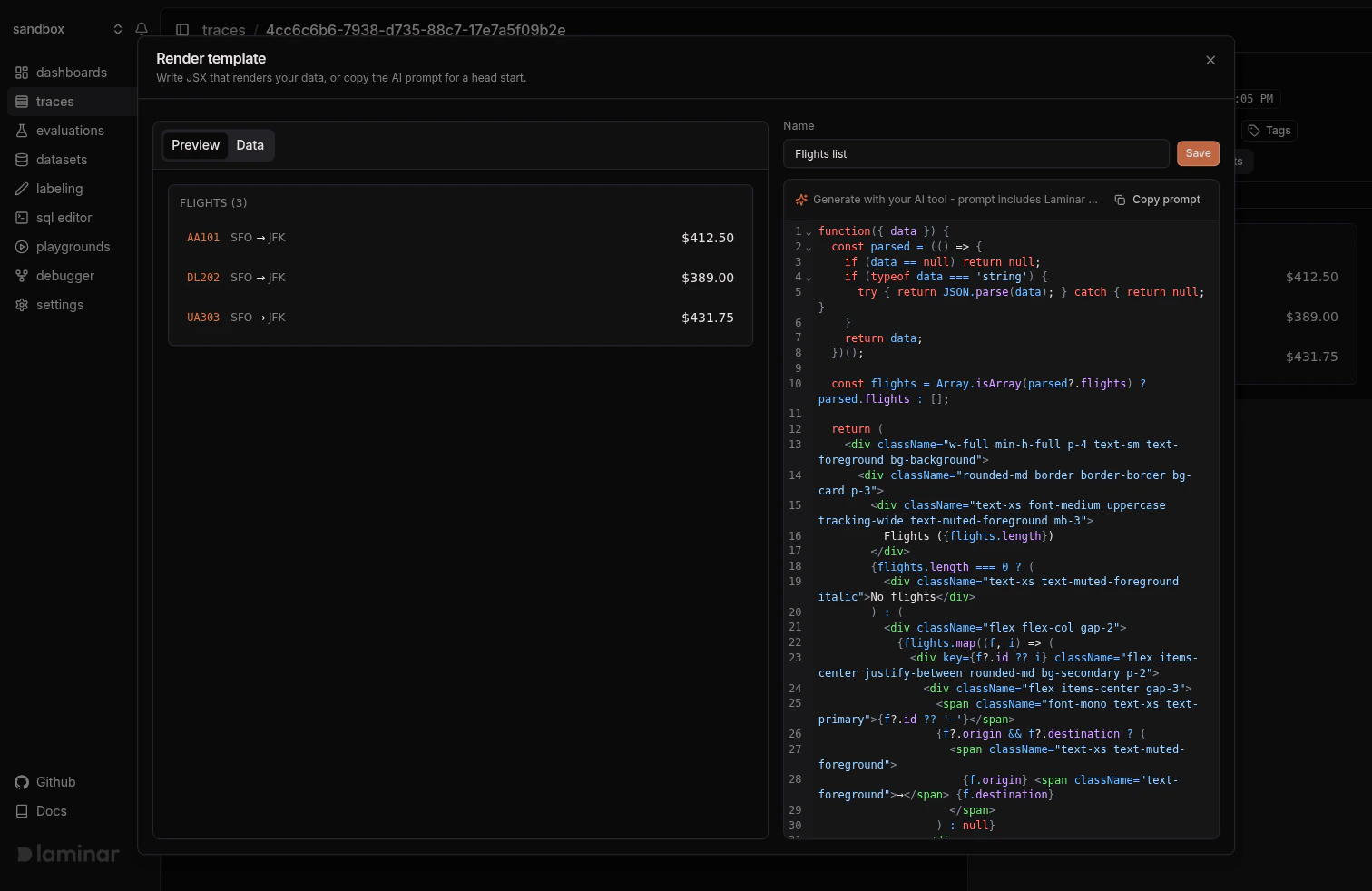

Open any I/O view, pick the mode dropdown, and click + New template. In the dialog:

1. Paste a sample payload into the Data tab on the left.
2. Click Copy prompt.
3. Paste it into Claude, ChatGPT, or any other LLM, add a line describing the view you want, and send.
4. Paste the returned JSX into the code editor. The preview updates live.
5. Name the template and click Create.

The prompt already covers Laminar’s style guide and the output shape, so you only need to describe the view.

You can also write JSX by hand if you prefer.

Manage templates

Open Project Settings → Render Templates to edit or delete any template in the project.

What a template looks like

A template is one function that takes { data } and returns JSX:

function({ data }) {
  return (
    <div className="w-full min-h-full p-4 text-sm text-foreground bg-background">
      {Array.isArray(data?.messages)
        ? data.messages.map((m, i) => (
            <div key={i} className="mb-2">
              <span className="text-xs font-medium uppercase tracking-wide text-muted-foreground">
                {m.role}
              </span>
              <div className="text-sm">{m.content}</div>
            </div>
          ))
        : <div className="text-muted-foreground italic">No messages</div>}
    </div>
  );
}

data can be anything the pane shows: an object, array, primitive, null, or undefined.
